Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM

Name: Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM
Brand: SMART AUTOMATION
Price: 1 USD

Best Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM wholesale

Brand Name : SMART AUTOMATION

Model Number : zyt-bl

Certification : ROHS CE ISO9001

Place of Origin : CHINA

MOQ : 100

Payment Terms : Western Union, T/T

Supply Ability : 100000PCS

Delivery Time : 45DAYS

Packaging Details : STANDARD EXPOTR PACKAGE

Torque : customed

Power : 20w-500w

Speed : customed

Voltage : dc 12v-48v

Contact Now

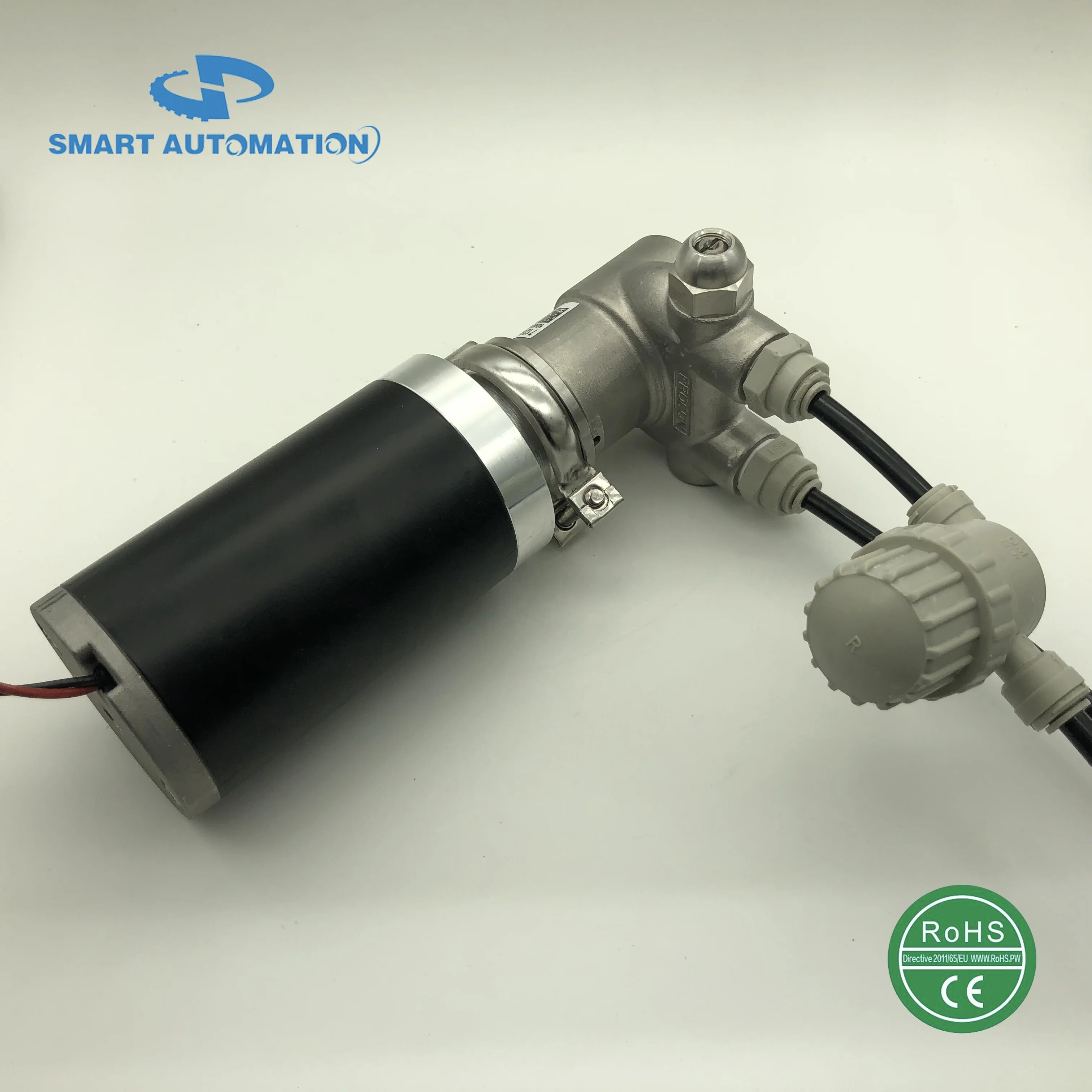

Customized Dc motors for air pumps, water pumps, hydraulic pumps

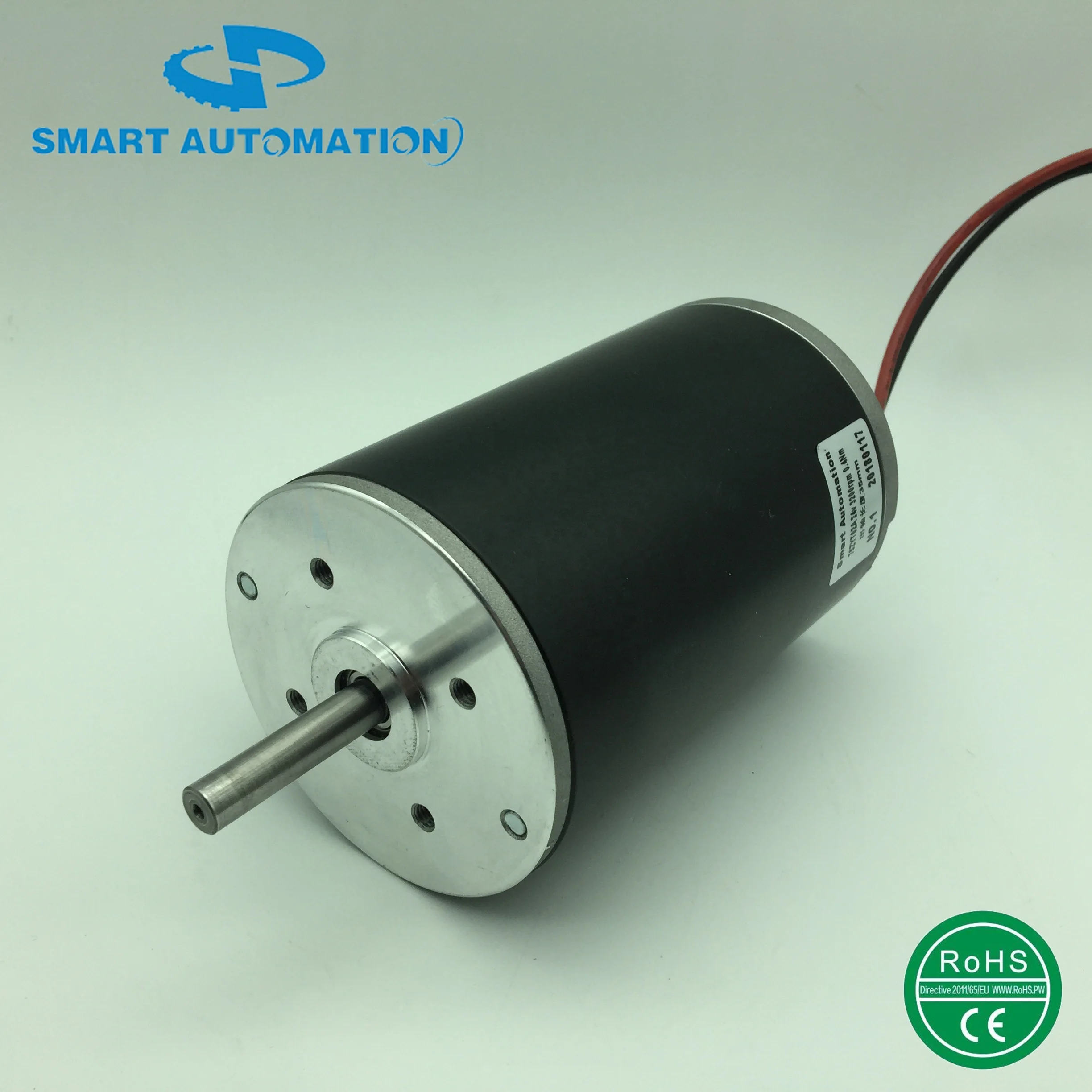

Brushed version

Motor Specifications

Shaft materials 3Cr13, HRC 36~40

High quality ball bearing

Hard ferrite magnet, 2- poles

Protection class IP 54

Insulation class: F, operating temperature range:-40℃~+140℃

CE and ROHS certified

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation

Rated voltage : 12v 18v 24v 36v 48v

Rated torque : upto 2.0Nm

Power: upto 800w

Rated speed: upto 10000rpm

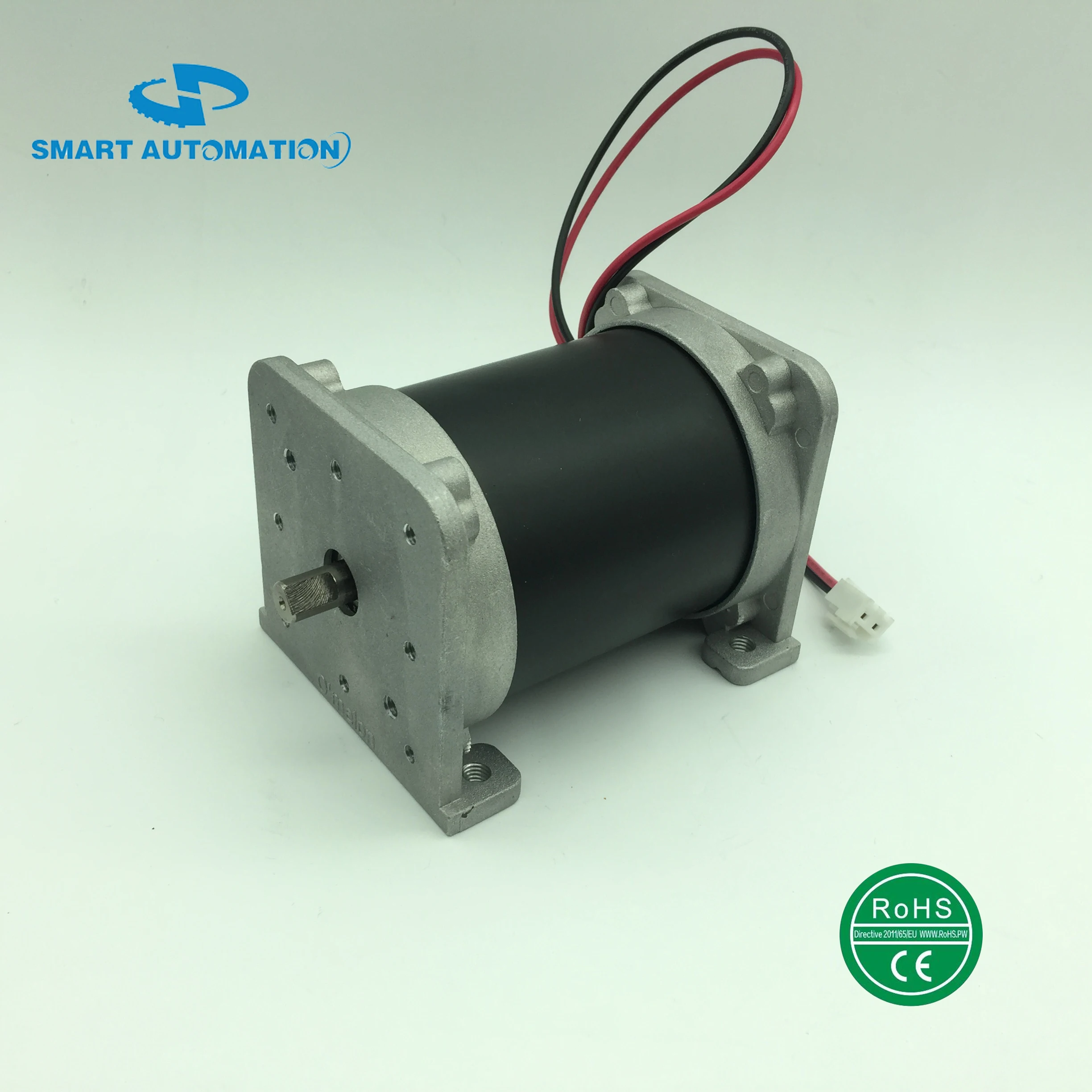

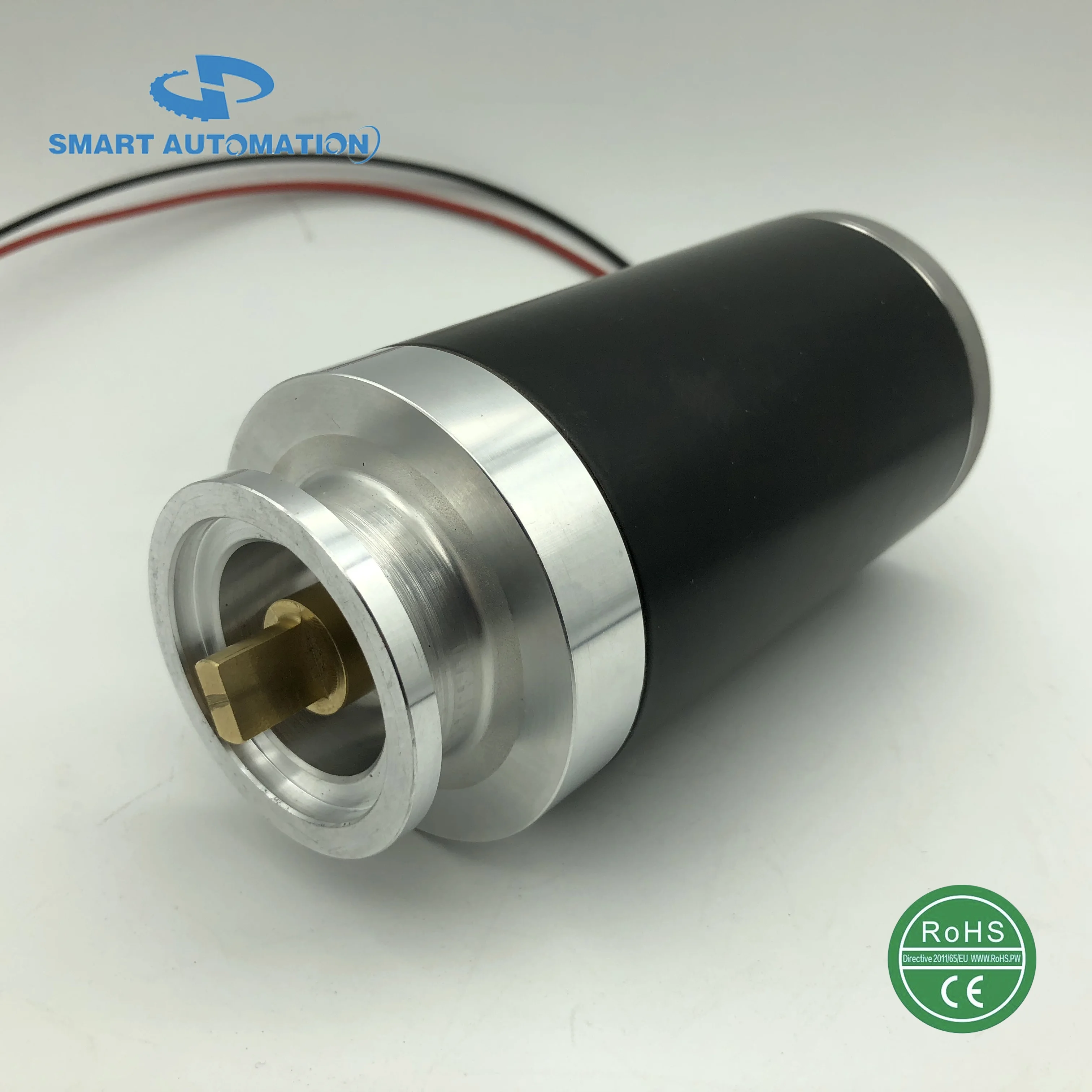

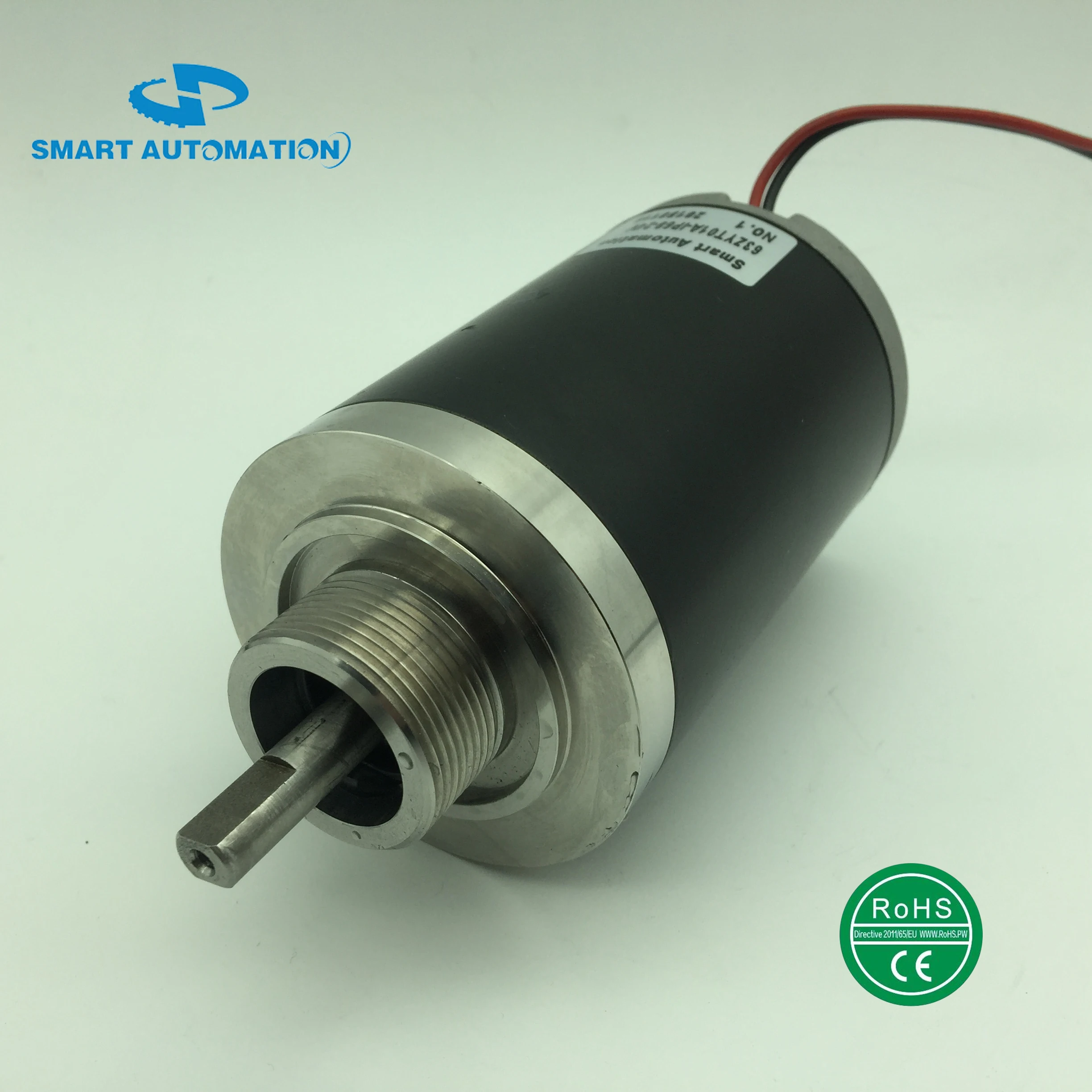

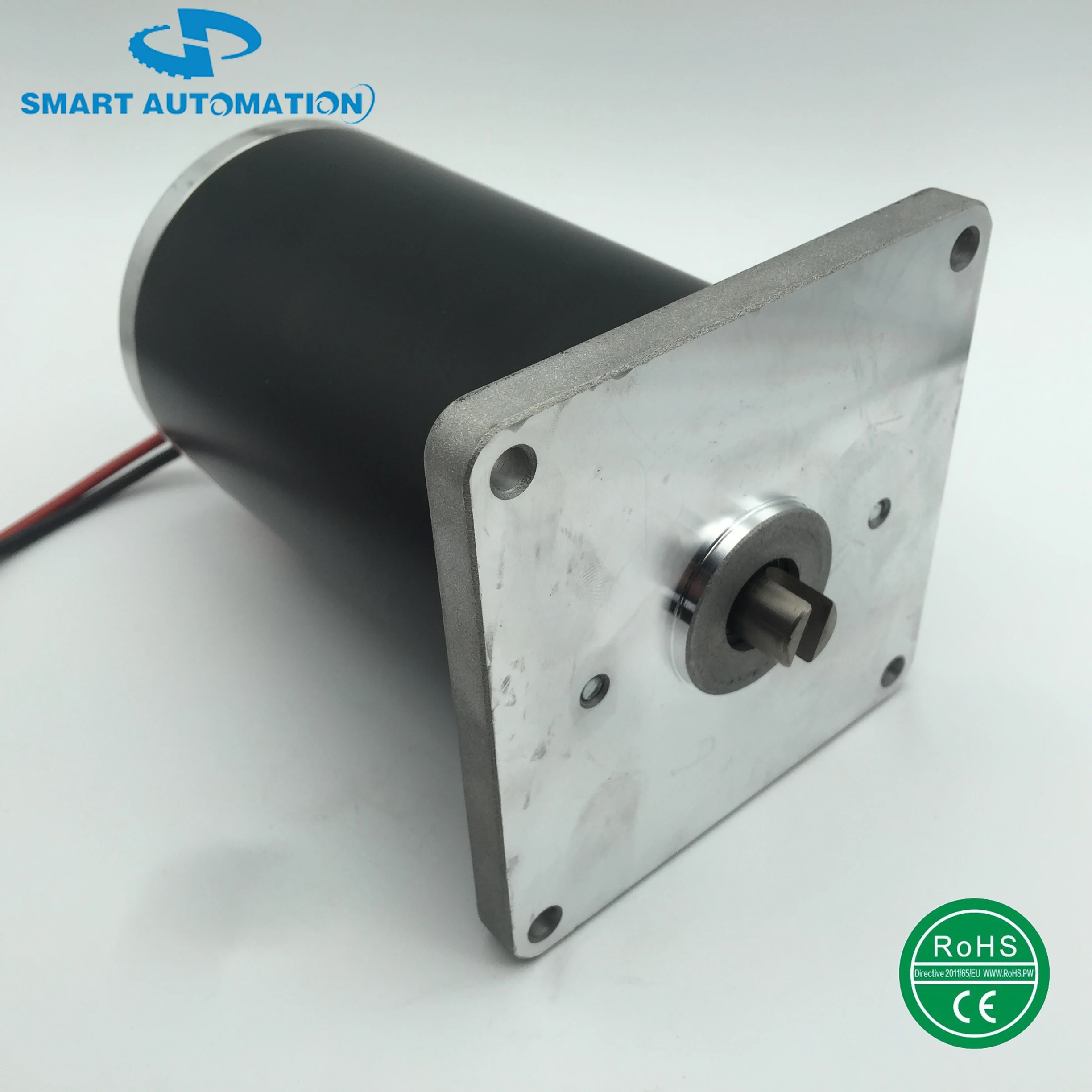

Customized pumps motors

Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM

size 42mm series

Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM

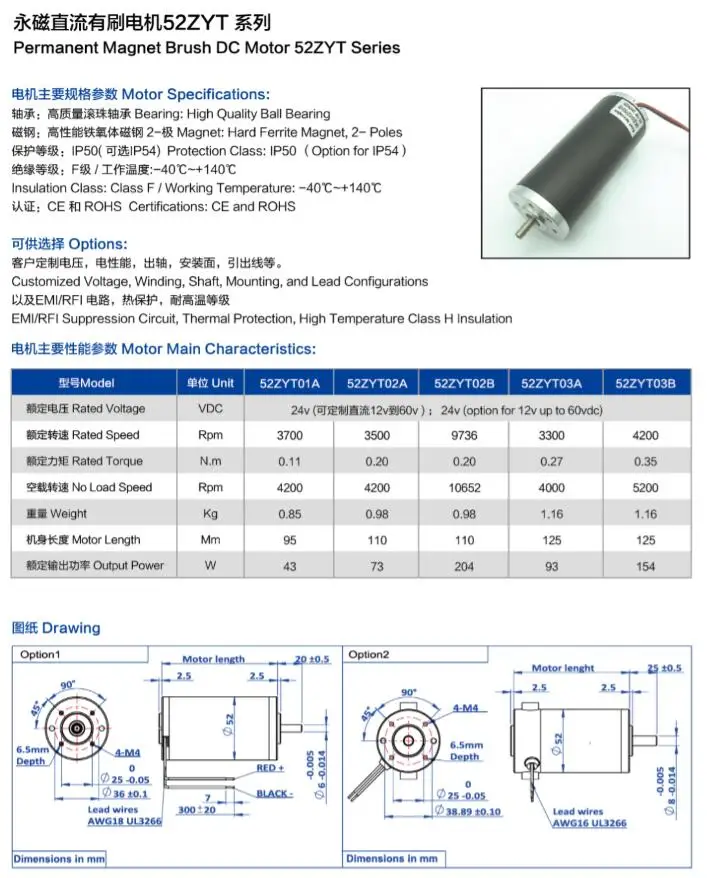

size 52mm series

Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM

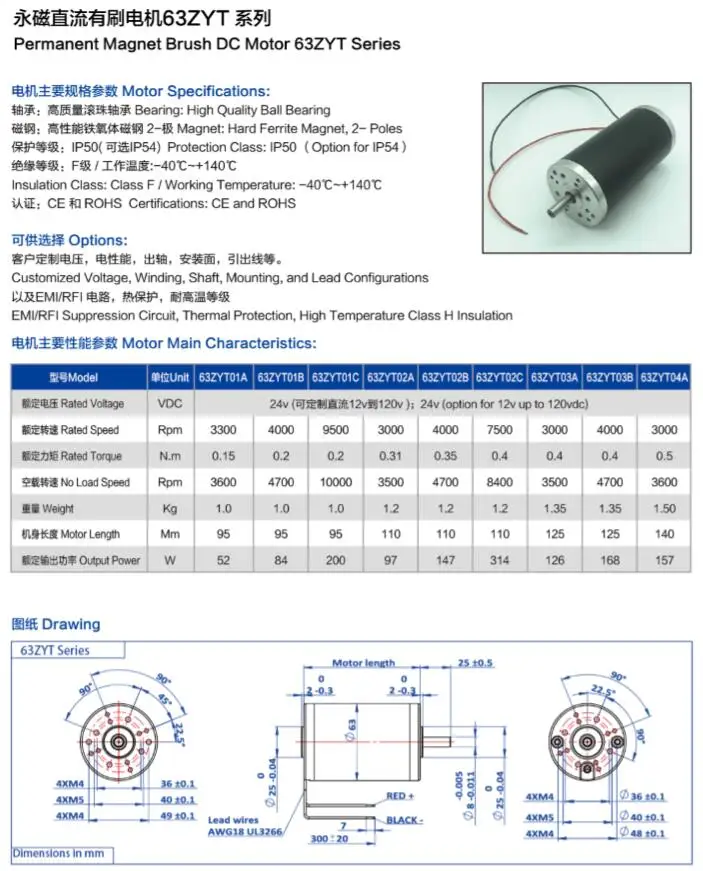

Size 63mm series

Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM

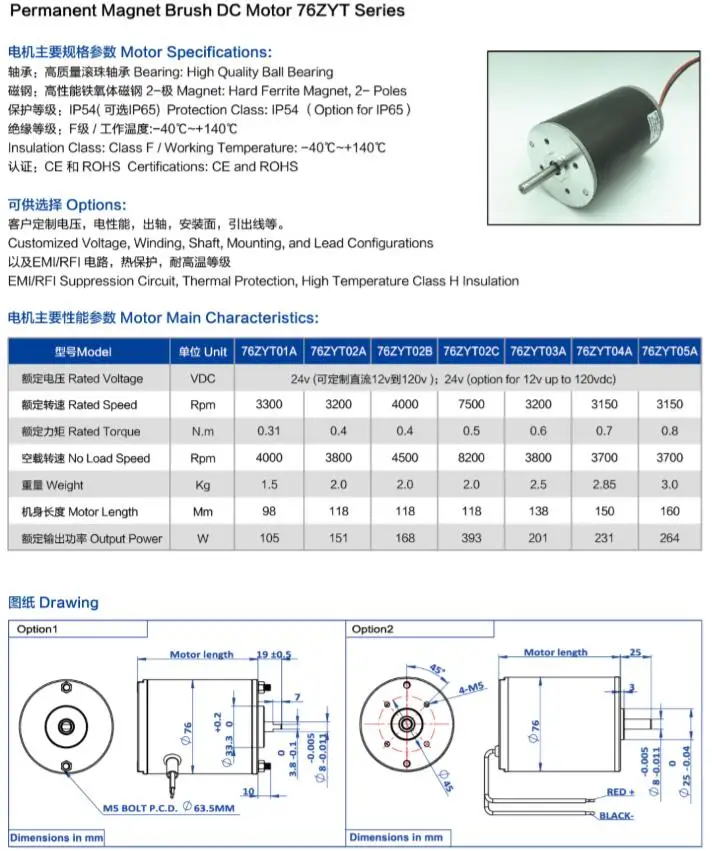

size 76mm series

Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM

Brushless version

Motor Specifications

Shaft materials 3Cr13, HRC 36~40

High quality ball bearing

Hard ferrite magnet, 4,8- poles

Protection class IP00 40 54 66

Insulation class: F, operating temperature range:-40℃~+140℃

CE and ROHS certified

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation

Rated voltage : 12v 18v 24v 36v 48v

Rated torque : upto 3Nm

Rated speed: upto 12000rpm

With or without halls

With or without controller integrated

Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM

Shaft Modifications and Motor Adders Available: Gearbox, Encoder and Controller OPTION

Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM

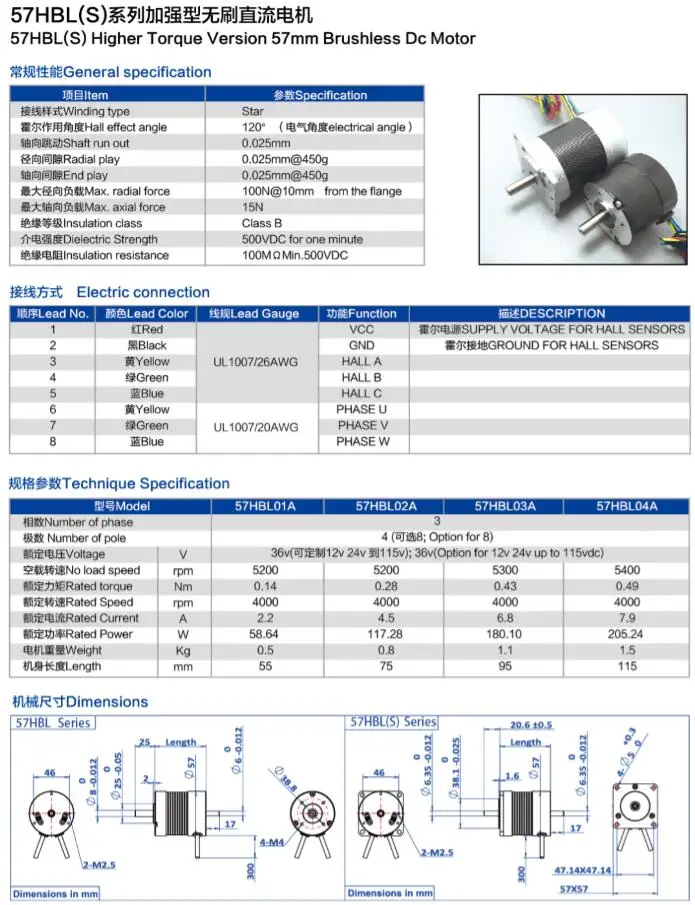

57mm bldc

Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM

80mm bldc

Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM

BLDC gearbox and brake encoder controller integrated

Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM

Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM Images
