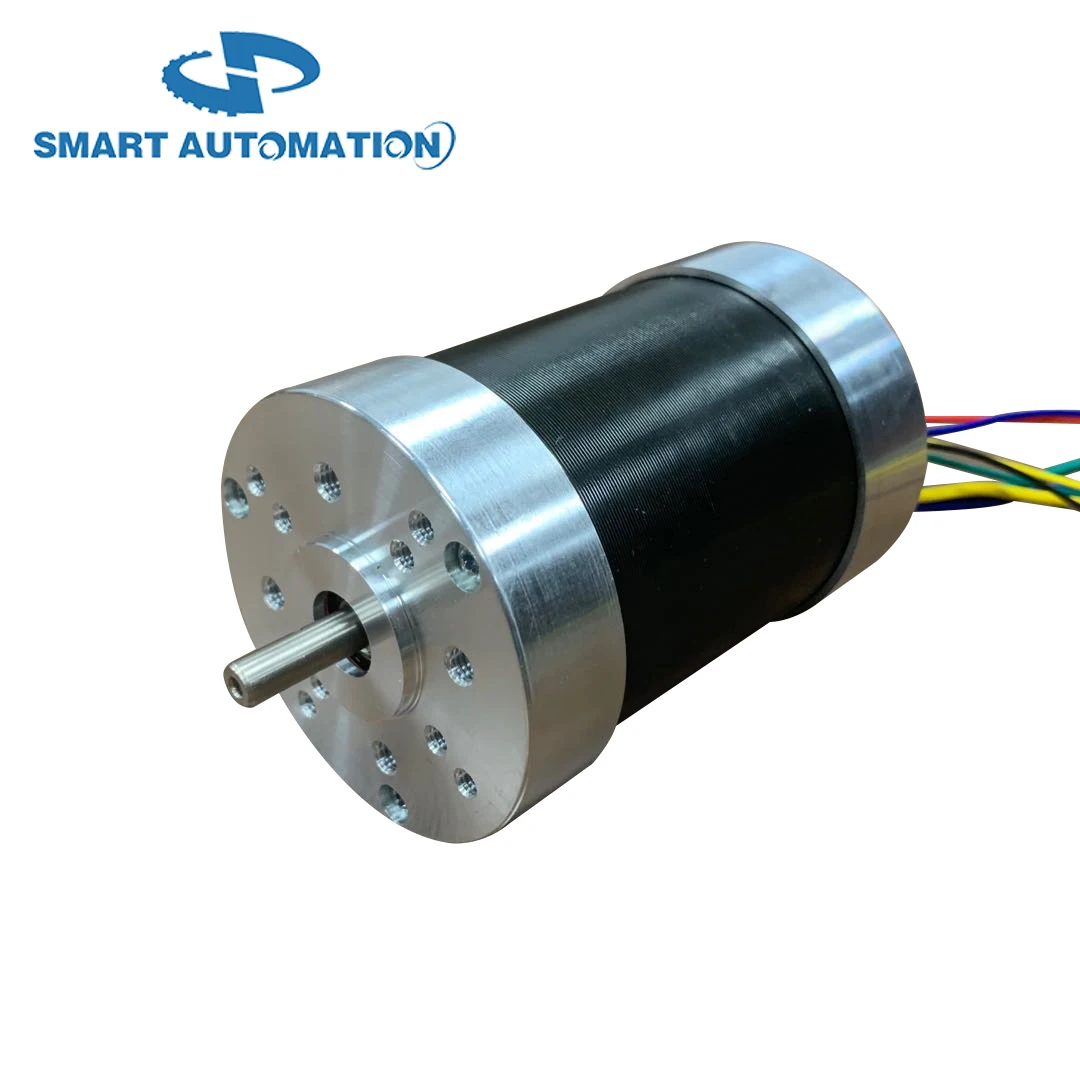

63mm Economical Brushless High Torque Dc Robotics Motor 1000rpm 3000rpm 4000rpm for Robot Machine Home Electricals

Brand Name : SMART AUTOMATION

Model Number : OEM

Certification : CE

Place of Origin : Changzhou CHINA

Supply Ability : 10000 Piece/Pieces per Month

Packaging Details : To be negotiated

MOQ : 50

Price : To be negotiated

Delivery Time : To be negotiated

Payment Terms : D/A, T/T, L/C,D/P

Warranty : 3years

Port : Shanghai

Current : customized for different power

Speed(RPM) : 1000rpm 3000rpm 4000rpm or customed

Continuous Current(A) : customed

Usage : Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, machine

Type : Micro Motor

Torque : upto 0.8Nm without gearhead

Construction : Brushless

Commutation : Brushless

Protect Feature : Drip-proof

Efficiency : IE 1

Contact Now

63mm High Torque Brushless Dc Motor, Customized Specification Gearbox/Encoder/Controller Integrated, to Replace Dunker&P

63RBL Series 63mm Brushless Dc Motor

Customized Specification

Option:Gearbox/Encoder/Controller Integrated

Item Specification
Winding type Star
Hall effect angle 120° (electrical angle)
Shaft run out 0.025mm
Radial play 0.05mm@450g
End play 0.05mm@450g
Max. radial force 150N@10mm from the flange
Max. axial force 60N
Insulation class Class F
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin.500VDC

Electric connection

Lead No. Lead Color Lead Gauge Function DESCRIPTION
1 Red UL1007/26AWG VCC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A
4 Green HALL B
5 Blue HALL C
6 Yellow UL1007/14AWG PHASE U
7 Green PHASE V
8 Blue PHASE W

63mm Economical Brushless High Torque Dc Robotics Motor 1000rpm 3000rpm 4000rpm for Robot Machine Home Electricals

Dimensions

63mm Economical Brushless High Torque Dc Robotics Motor 1000rpm 3000rpm 4000rpm for Robot Machine Home Electricals

63mm Economical Brushless High Torque Dc Robotics Motor 1000rpm 3000rpm 4000rpm for Robot Machine Home Electricals

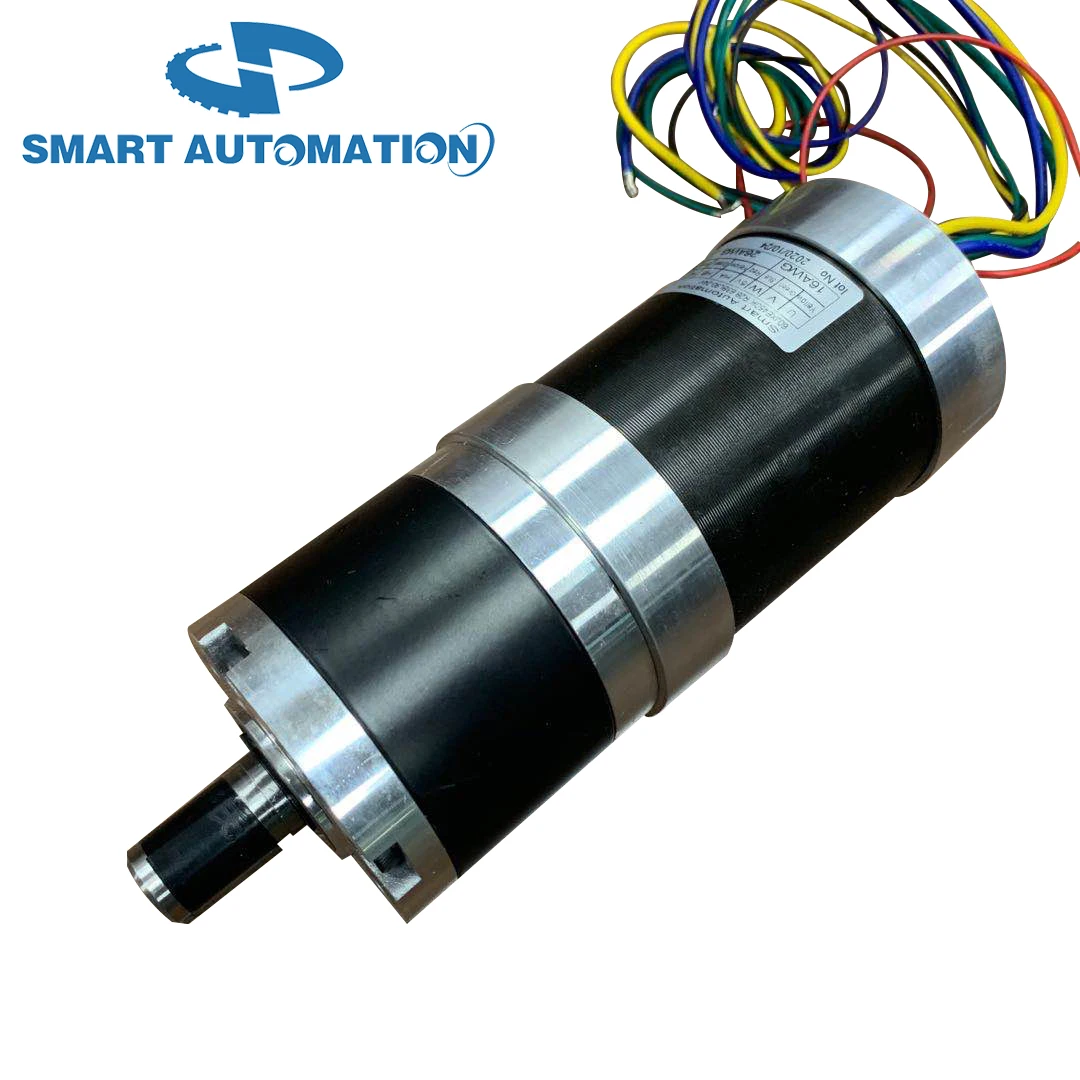

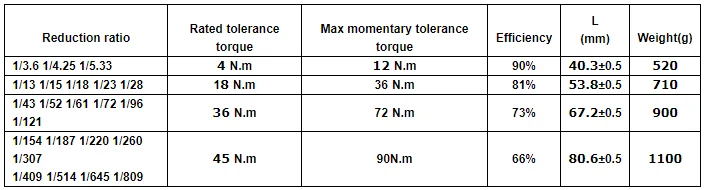

Brushless DC Planetary Gear Motor 60JXE450K.63RBL Series

Motor Main Specifications:

Bearing: High Quality Ball Bearing

IP54 Protection Class: IP54

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Certifications: CE and ROHS

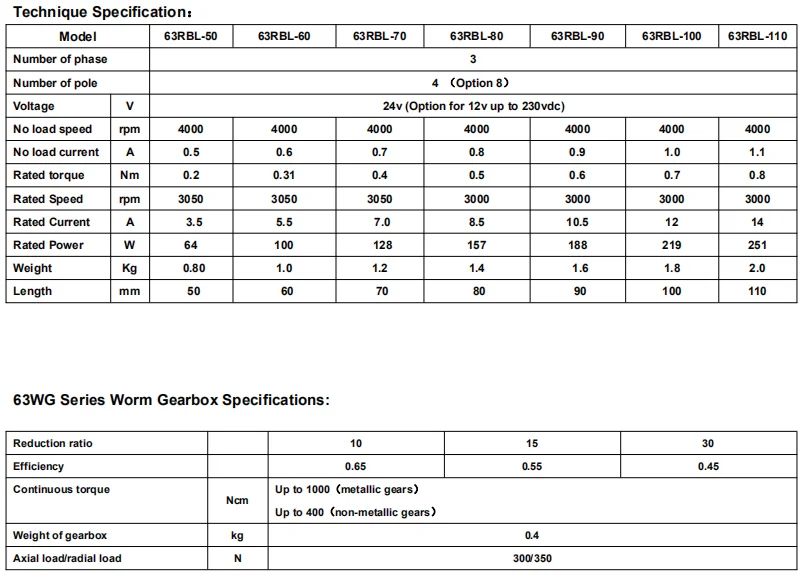

Technique Specification


63mm Economical Brushless High Torque Dc Robotics Motor 1000rpm 3000rpm 4000rpm for Robot Machine Home Electricals

63mm Economical Brushless High Torque Dc Robotics Motor 1000rpm 3000rpm 4000rpm for Robot Machine Home Electricals


63mm Economical Brushless High Torque Dc Robotics Motor 1000rpm 3000rpm 4000rpm for Robot Machine Home Electricals

63mm Economical Brushless High Torque Dc Robotics Motor 1000rpm 3000rpm 4000rpm for Robot Machine Home Electricals

63WG.63RBL SERIES BRUSHLESS DC WORM GEAR MOTOR

Motor Main Specifications:

Bearing: High Quality Ball Bearing

Protection Class: IP54

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Certifications: CE and ROHS


63mm Economical Brushless High Torque Dc Robotics Motor 1000rpm 3000rpm 4000rpm for Robot Machine Home Electricals

63mm Economical Brushless High Torque Dc Robotics Motor 1000rpm 3000rpm 4000rpm for Robot Machine Home Electricals

63mm Economical Brushless High Torque Dc Robotics Motor 1000rpm 3000rpm 4000rpm for Robot Machine Home Electricals

More BLDC Motors Available:

63mm Economical Brushless High Torque Dc Robotics Motor 1000rpm 3000rpm 4000rpm for Robot Machine Home Electricals
