Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w

Name: Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w
Brand: SMART AUTOMATION
Price: 1 USD

Best Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w wholesale

Brand Name : SMART AUTOMATION

Model Number : BL Series

Certification : ROHS CE ISO9001

Place of Origin : CHINA

MOQ : 100

Payment Terms : T/T, Western Union

Supply Ability : 100000PCS

Delivery Time : 15 DAYS

Packaging Details : STANDARD EXPOTR PACKAGE

Torque : upto 8Nm (upto 120Nm if with gear head)

Speed : Customizable 1000rpm 3000rpm 4000rpm

Current : customed

Size : 28mm 30mm 36mm 42mm 52mm 57mm 60mm 63mm 74mm 80mm 86mm 110mm 130mm

Gear Reducer : Option Planetary and Worm Gearbox

Encoder : Optical Magnetic Encoder Integrated

Brakes : Optical Magnetic Encoder Integrated

Contact Now

Good Quality Brushless DC Motors / BLDC Gear Motors

We make Customizable voltage, dimension, performance, shaft, mounting...etc

We make integrated controller, encoder, gearbox, brake...etc

Please Send Inquiry, and We Will Get You the Best and Most Cost Effective Solution/Proposal.

Diameter	28mm 36mm 42mm 52mm 57mm 60mm 63mm 70mm 74mm 80mm 86mm 90mm 110mm 130mm
Rated voltage	10v 12v 18v 24v 36v 48v up to 380vdc
Rated torque	Up to 10Nm (if with gearbox up to 120Nm)
Rated speed	1rpm Up to 15000rpm
Rated power	10w Up to 2000w
Protection class	Option IP00 40 50 54 56 66 67
EMI	EMI suppression available
Thermal	Thermal protection available
Gearbox	Option with planetary or worm gearbox assembled
Brake	Option with electric brake assembled
Encoder	Option with Optical or Magnetic encoders
Controller	Option with controller integrated
Halls	With halls or hall-less

Below Are Only Some of Our Typical Models.

Pls Contact Us for More Models or Customized Motors.

(All are Customizable Please Send Inquiry )

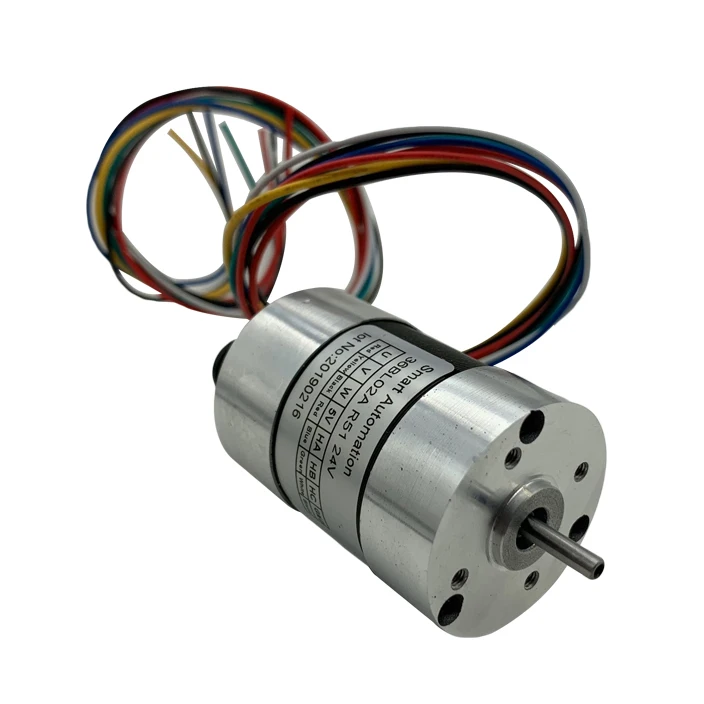

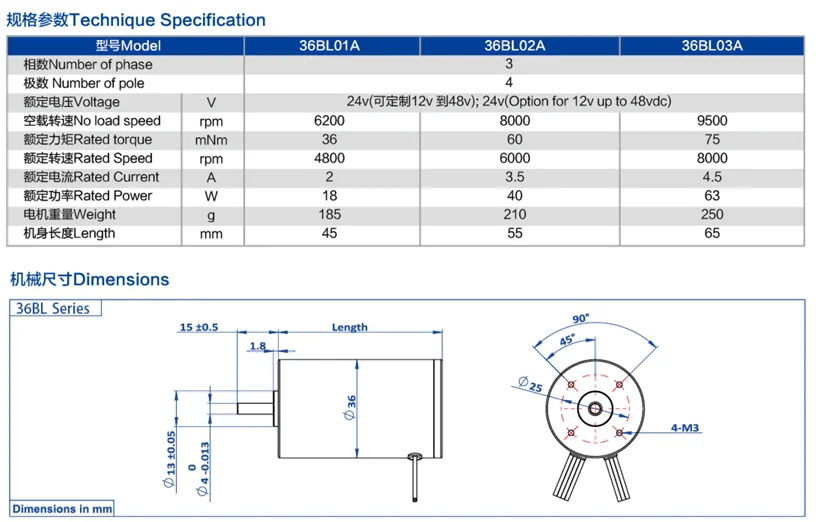

Size 36mm

Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w

Size 42mm Round Type

Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w

Size 42mm x 42mm Square

Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w

Size 57mm

Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w

Size 60mm

Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w

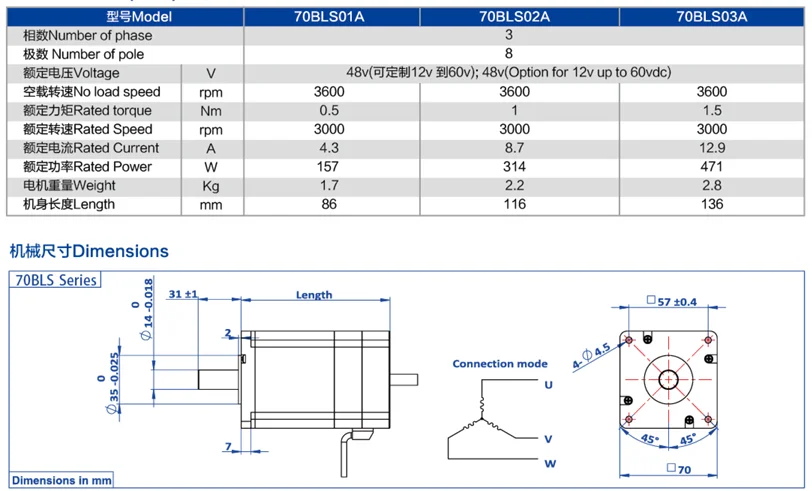

Size 70mm

Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w

Size 80mm Round Type

Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w

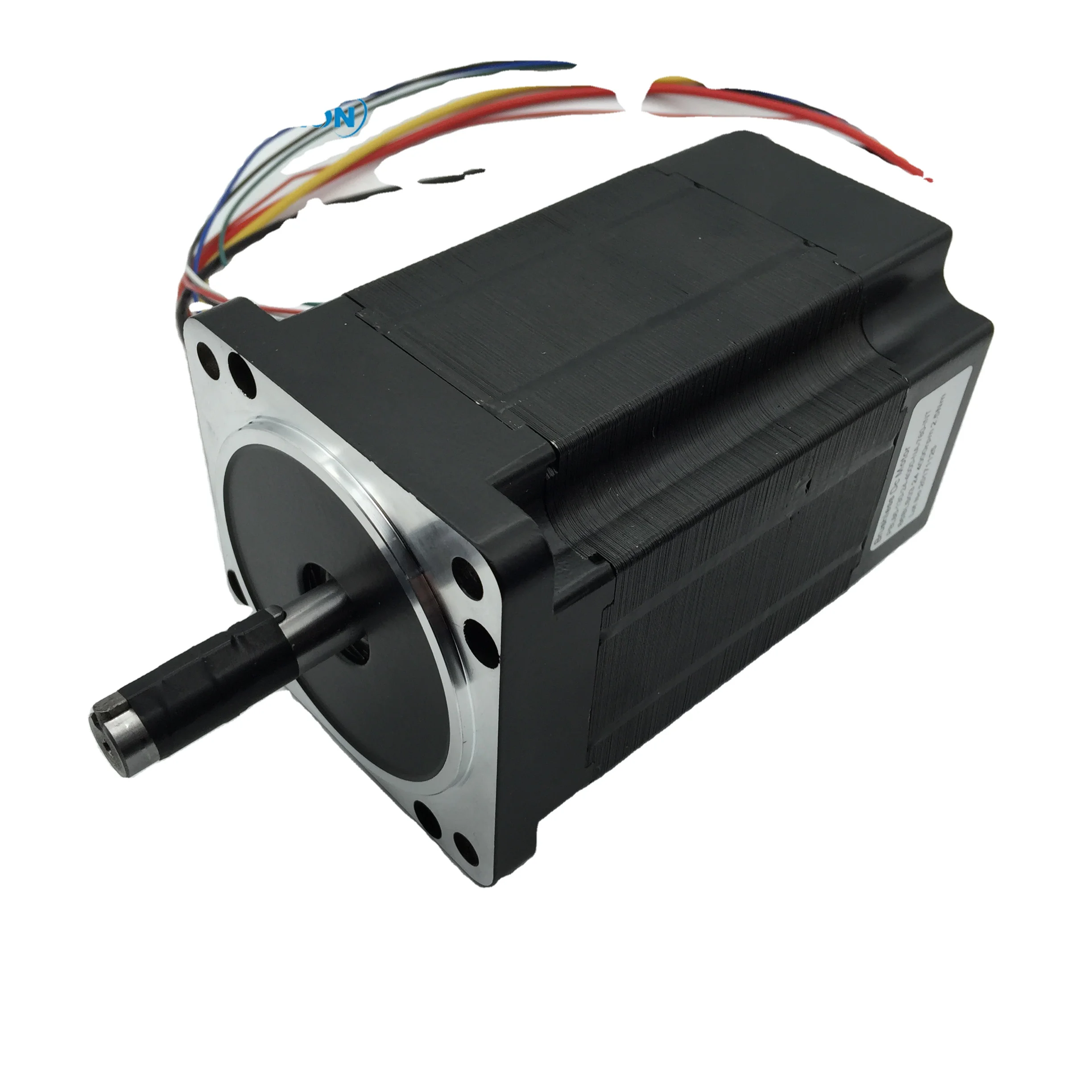

Size 86mm x 86mm Square

Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w

Size 86mm Round

Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w

Size 110mm

Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w

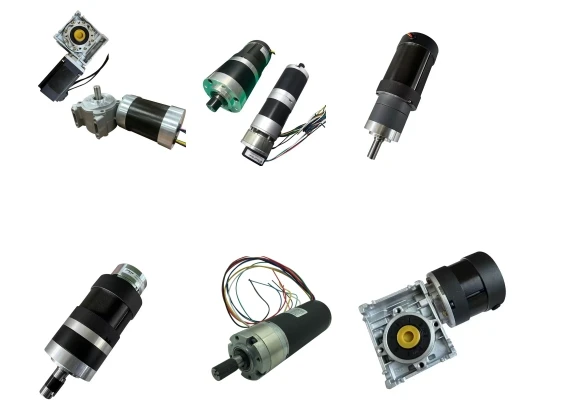

BLDC Gear Motors

Options :

Integrated With Planetary Worm Gearbox / Encoder / Brake / Controller

Below are typical gearbox

(feartures: helical gear low noise, long life, high torque design)

42mm planetary gearbox

56mm planetary gearbox

Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w

Customized Products and OEM / ODM

Good Quality Electric Brushless Dc Motor 12v 24v 36v 48v to 320v BLDC Servo Motor with Encoder 50w 100w 200w 300w 500w
